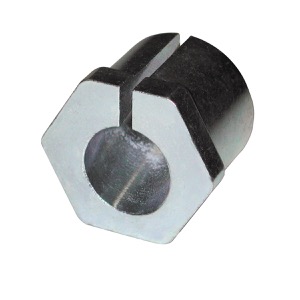

Specialty 23130 4X4 C/C Sleeve

Myers No
72515

Long Description

Specialty 23130
4WD & RWD Camber / Caster Sleeve Set
Change camber, caster, or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install zero degree sleeve 23109 or 23139 to determine the change needed, then install the correct sleeve. To adjust, the sleeve may be lifted and rotated 1/8 turn.

Set contains 1 each of Specialty #s: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139



Base Price
163.24

Features
Series Adjustment Range: Camber/Caster ± .25° to ± 2.00°
Installation Time: .5 hr / side
Required: 1 per wheel


Manufacturer Cross Reference
SP23130

Additional Info 4
23130 SP23130

Weight
2.39
