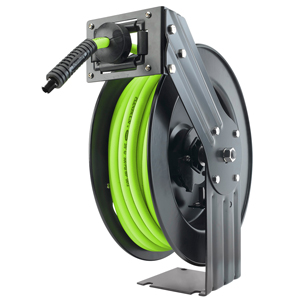

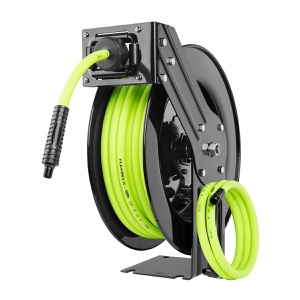

This retractable, open face hose reel is ideal for indoor shop, mobile and industrial applications.

• Reel Features: Multi-Position Guide Arm - Allows mounting on wall, tank or overhead
• Durable Heavy-Duty Steel Construction - Provides strength and stability to the reel and bracket
• Corrosion-Resistant Powder Coating - Provides extra measure of protection against the elements
• Four-Way Direction Rollers - Allow the hose to be easily pulled from the reel
• Self-Locking Fasteners - Stay tight even in mobile installations
• Narrow Size - Ideal for easy placement and storage
• Multi-Position Release Ratchet - Allows appropriate amount of hose to be extended for each job site
• Metal Latching Pawl - Makes an audible clicking sound allowing the latching zone to be locked quickly and easily
• Fully-Enclosed Spring Motor - Packed with grease for extended life

• Hose Length: 50 ft.
• Hose ID: 3/8 in.
• Hose Material: Flexible Hybrid Polymer
• Hose Color: ZillaGreen
• Application: Air
• Working pressure at 70°F: 300 psi
• Temperature Range (F): -40 to 140
• Reel Inlet: 1/4 in. MNPT

  Manufacturer Cross Reference
  L8611FZ L8611FZ

  Mohawk Cross Reference
  L8611FZ
